DBeaver
Connect a DBeaver client to a Hydrolix cluster
Use DBeaver with Hydrolix
DBeaver is a free cross-platform database tool which supports many popular SQL databases.
This page describes the steps to connect a DBeaver client to the native HTTP (ClickHouse) interface in a Hydrolix cluster.
Overview of steps
- Create a new connection object
- Select ClickHouse driver
- Enter JDBC URL and credentials
- Set the SSL Toggle
- Complete configuration
Prerequisites
Local software and configuration
- Download DBeaver and install. These instructions cover version 25.0.x
- Be ready with your cluster hostname and authentication credentials
Hydrolix cluster configuration
- Ensure that you've allowed inbound access to your cluster
- Ensure your cluster is running the ClickHouse HTTP server. By default, Hydrolix clusters run a ClickHouse HTTP server that listens on port 8088. That server won't be running if your Hydrolix cluster configuration contains
disable_traefik_clickhouse_http_port: true
Connect using DBeaver

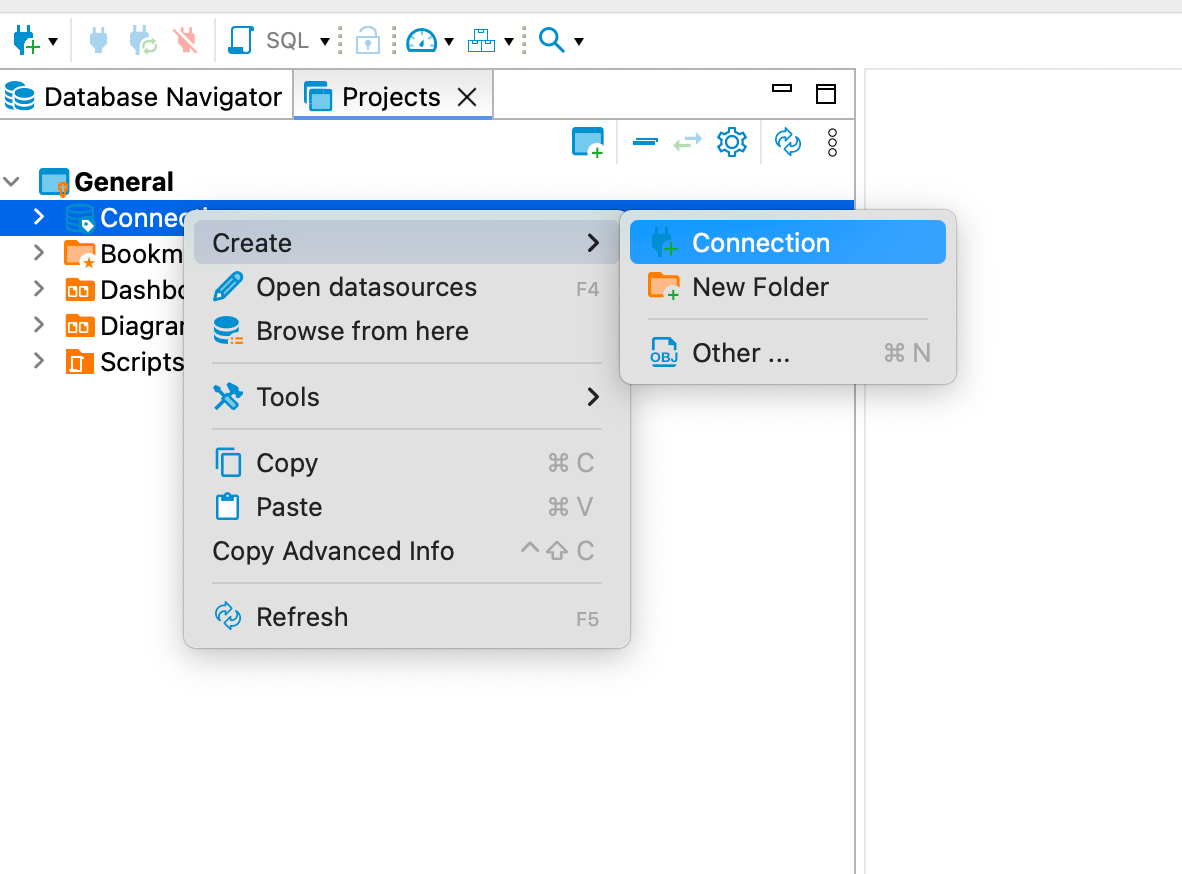

Create a new connection object
Open General and right click Connections. From the context menu, select Create, then Connection.

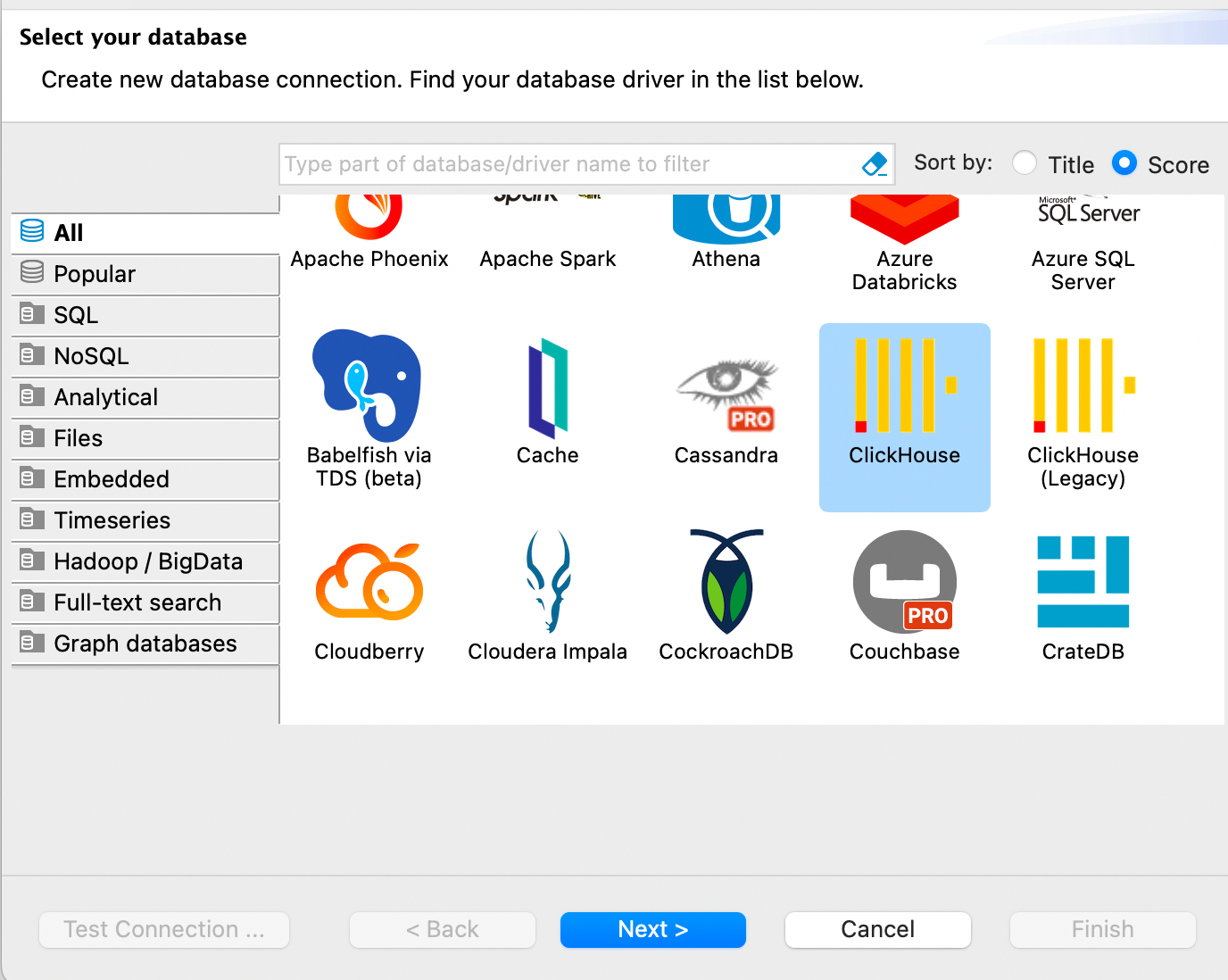

Select ClickHouse driver
Select ClickHouse database driver. Don't use the ClickHouse (Legacy) driver.

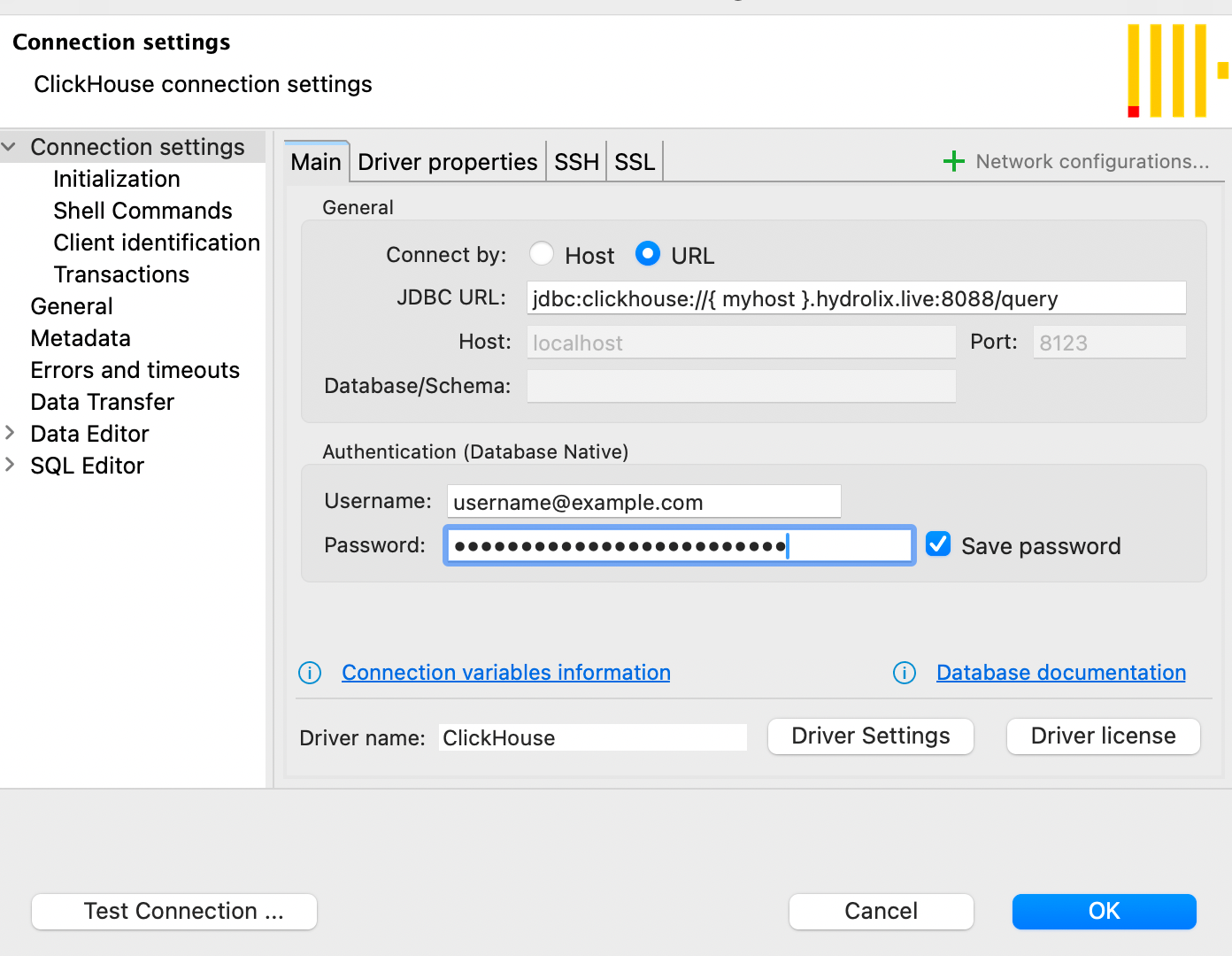

Enter JDBC URL and credentials
- Select the URL radio button in the Connect by field.
- Enter the entire JDBC URL.
- Scheme is
jdbc:clickhouse
- Replace
{myhost}.hydrolix.live
with your cluster name - Use
8088
as the port - Suffix the JBDC URL with the
/query
path
- Scheme is
- Enter your authentication credentials.

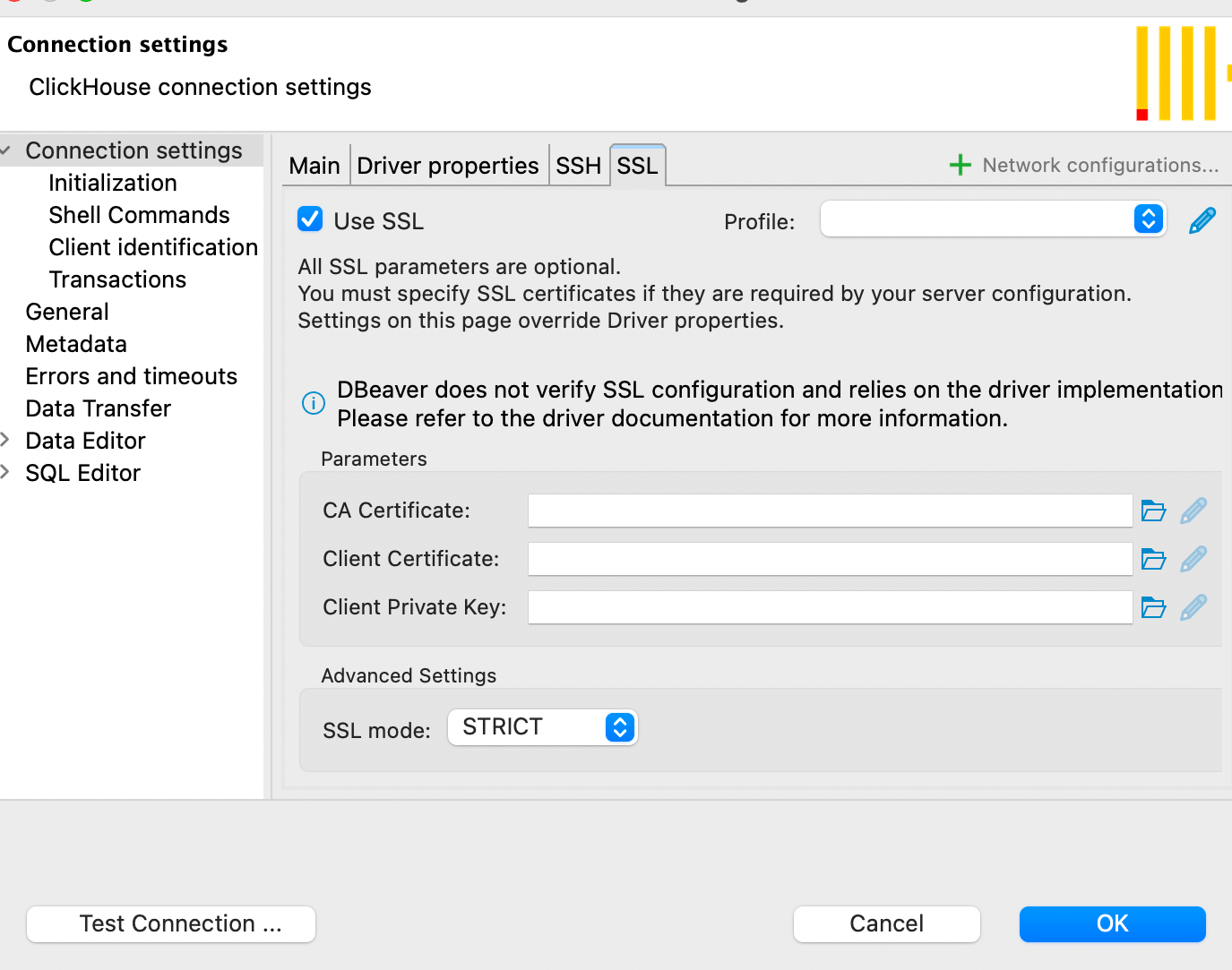

Set the Use SSL toggle
Select Use SSL.

Complete configuration
- Select OK.
- You can now query your Hydrolix cluster using your DBeaver client.
Example query
The hydro.logs
table contains log event data from the local cluster and will always be present.
Select menu item SQL Editor > New SQL script and test your DBeaver configuration using the following query.
SELECT COUNT() FROM hydro.logs WHERE timestamp > NOW() - INTERVAL 24 HOUR
The query should succeed, showing the number of log events collected in the last day.
