Migrating from PostgreSQL
Setting up PostgreSQL in high availability is important for ensuring that the Hydrolix cluster remains available and performs well in a production environment. It provides enhanced uptime, performance, scalability, and fault tolerance, which are all essential for Hydrolix.
For testing/dev purpose you can use the built-in Hydrolix PostgreSQL instance. For production applications, we recommend migrating this PostgreSQL into a high availability external instance.
Step by step migration in GKE
This step by step migration requires access to the current cluster and setting up a new database on google cloud using Cloud SQL.
Get the ROOT_DB_PASSWORD from k8s secret
| kubectl get secret general -o jsonpath='{.data.ROOT_DB_PASSWORD}' | base64 -d ; echo
|

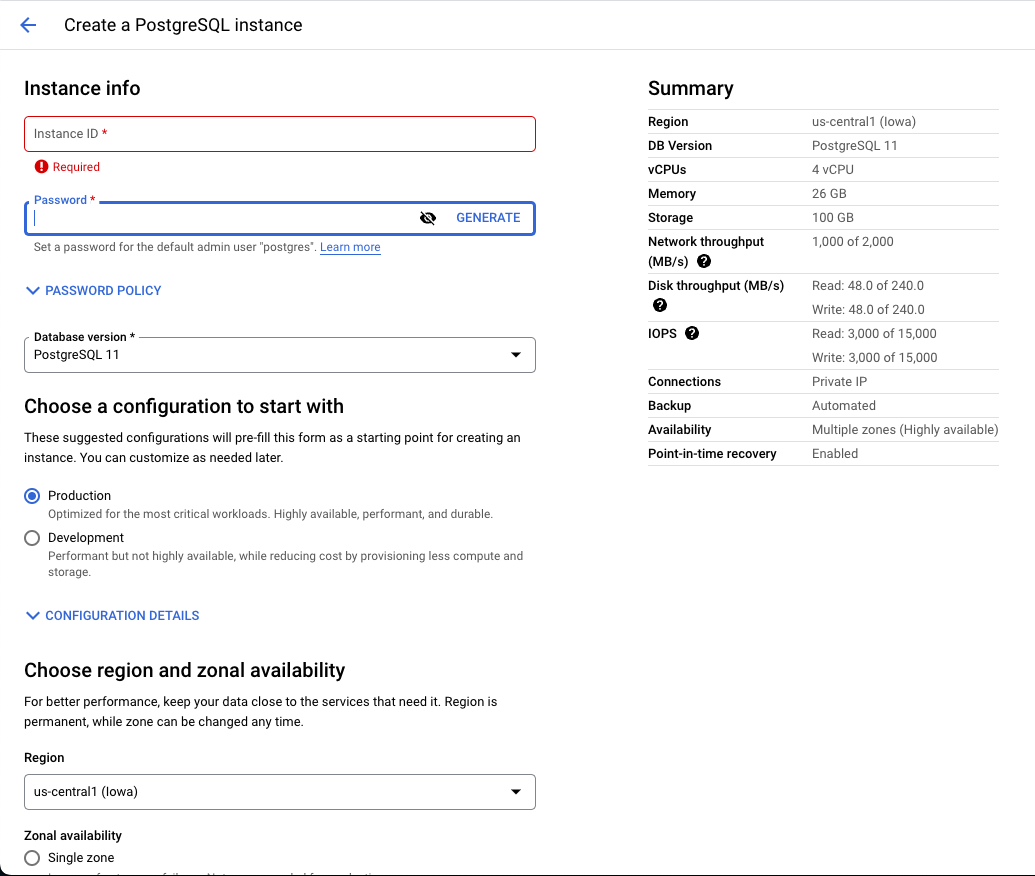

Create a new postgres database
- Verify that the new database is on the same region as the k8s cluster.
- Create a new postgres database using version 11
- Use the password previously retrieved from the k8s cluster

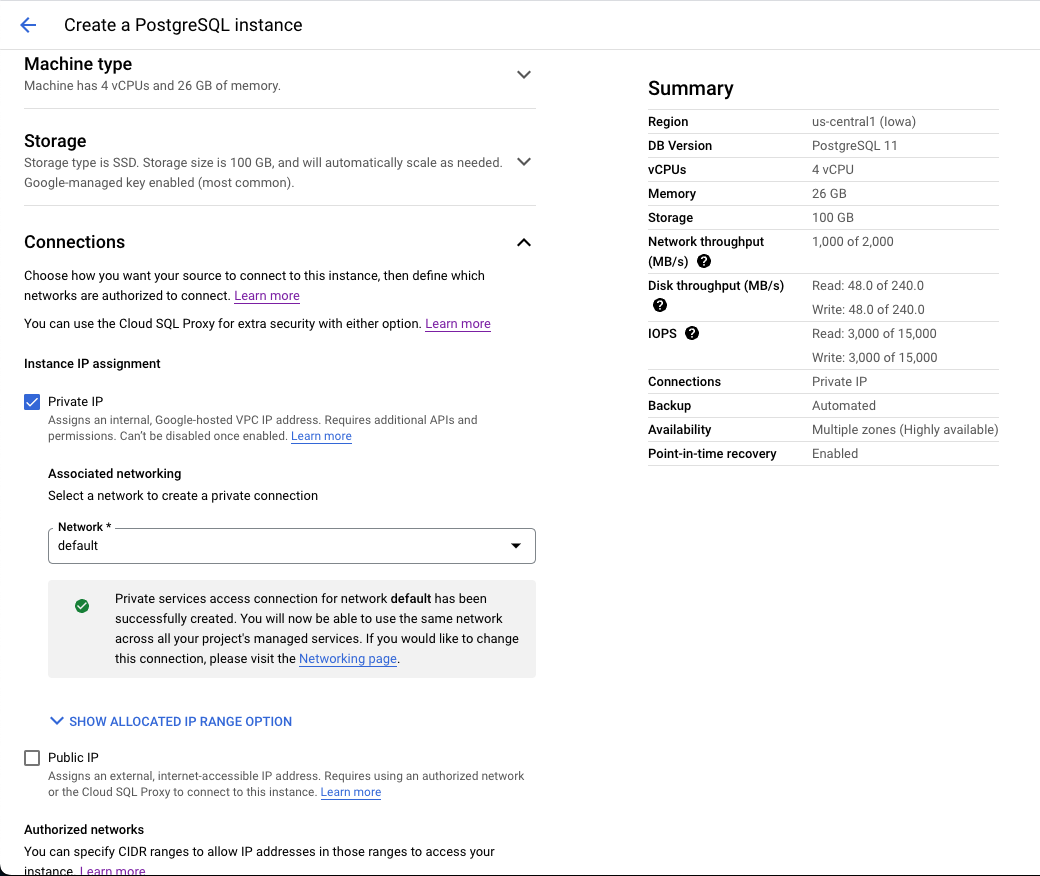

- Click on Customize your Instance and then Connections
- Disable Public IP and enable Private IP.
- Select the proper network and ensure that the VPC can connect to your K8s cluster.
While your External Postgres is being created
-
Log into your existing k8s Postgres
shell
kubectl exec -it postgres-0 /bin/bash
-
Install vim:
shell
apt-get update
apt-get -y install vim
```text
| - Export all the roles from the database:
```shell
pg_dumpall -U turbine --roles-only > /pv/data/roles.sql
```
- The file includes too many roles and ALTER command which aren't compatible with Cloud SQL, we need to modify it from something like that:
```sql
--
-- PostgreSQL database cluster dump
--
SET default_transaction_read_only = off;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
--
-- Roles
--
CREATE ROLE config_api;
ALTER ROLE config_api WITH NOSUPERUSER INHERIT NOCREATEROLE NOCREATEDB LOGIN NOREPLICATION NOBYPASSRLS PASSWORD 'md527cfa08393d630740c9b73f83xxxxxxx';
CREATE ROLE grafana;
ALTER ROLE grafana WITH NOSUPERUSER INHERIT NOCREATEROLE NOCREATEDB LOGIN NOREPLICATION NOBYPASSRLS PASSWORD 'md57f2d9019e5ef927b0e52853d7yyyyyyy';
CREATE ROLE keycloak;
ALTER ROLE keycloak WITH NOSUPERUSER INHERIT NOCREATEROLE NOCREATEDB LOGIN NOREPLICATION NOBYPASSRLS PASSWORD 'md5ba91f2107aac1f213e1d674d7zzzzzzz';
CREATE ROLE query_api;
ALTER ROLE query_api WITH NOSUPERUSER INHERIT NOCREATEROLE NOCREATEDB LOGIN NOREPLICATION NOBYPASSRLS PASSWORD 'md553161b150a3d04d0cef1f05b6aaaaaaa';
CREATE ROLE superset;
ALTER ROLE superset WITH NOSUPERUSER INHERIT NOCREATEROLE NOCREATEDB LOGIN NOREPLICATION NOBYPASSRLS PASSWORD 'md51dd754c88323aeb745cc3ae74bbbbbbb';
CREATE ROLE superset1;
ALTER ROLE superset1 WITH NOSUPERUSER INHERIT NOCREATEROLE NOCREATEDB LOGIN NOREPLICATION NOBYPASSRLS PASSWORD 'md5050b4df6f9f2ae09b4736a880ccccccc';
CREATE ROLE turbine;
ALTER ROLE turbine WITH SUPERUSER INHERIT CREATEROLE CREATEDB LOGIN REPLICATION BYPASSRLS PASSWORD 'md571302861afa3b6eb33d7d9230ddddddd';
--
-- Role memberships
--
GRANT config_api TO turbine GRANTED BY turbine;
GRANT grafana TO turbine GRANTED BY turbine;
GRANT keycloak TO turbine GRANTED BY turbine;
GRANT query_api TO turbine GRANTED BY turbine;
GRANT superset TO turbine GRANTED BY turbine;
GRANT superset1 TO turbine GRANTED BY turbine;
--
-- PostgreSQL database cluster dump complete
--
```
- To something like that:
```sql
--
-- PostgreSQL database cluster dump
--
SET default_transaction_read_only = off;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
--
-- Roles
--
CREATE ROLE config_api WITH NOSUPERUSER INHERIT NOCREATEROLE NOCREATEDB LOGIN NOREPLICATION NOBYPASSRLS PASSWORD 'md527cfa08393d630740c9b73f83xxxxxxx';
CREATE ROLE keycloak WITH NOSUPERUSER INHERIT NOCREATEROLE NOCREATEDB LOGIN NOREPLICATION NOBYPASSRLS PASSWORD 'md5ba91f2107aac1f213e1d674d7zzzzzzz';
CREATE ROLE query_api WITH NOSUPERUSER INHERIT NOCREATEROLE NOCREATEDB LOGIN NOREPLICATION NOBYPASSRLS PASSWORD 'md553161b150a3d04d0cef1f05b6aaaaaaa';
--
-- Role memberships
--
GRANT config_api TO postgres GRANTED BY postgres;
GRANT keycloak TO postgres GRANTED BY postgres;
GRANT query_api TO postgres GRANTED BY postgres;
--
-- PostgreSQL database cluster dump complete
--
```
So to summarize DELETE the role:
- grafana
- superset
- superset1
- turbine
Delete the line which are just creating the role like:
`CREATE ROLE config_api;`
Replace the `ALTER` command with `CREATE`.
And finally change the GRANT command from `turbine` to `postgres` for both databases and users.
#### After your cluster is created
- Get the IP address of your external postgres from google
- Try to connect to your cluster via psql, use the password retrieved earlier:
```shell
psql -h $IP_FROM_GOOGLE_CLOUD -U postgres
```
- If the connection works you can then import the new role:
```shell
psql -h $IP_FROM_GOOGLE_CLOUD -U postgres < /pv/data/roles.sql
```
#### Scale down services using postgres
If the connection and the role import worked properly we have to scale down all the services which are leveraging postgres:
- stream-peer
- merge-peer
- kafka-peer
- kinesis-peer
- batch-peer
- turbine-api
- keycloak
- intake-api
- decay
- vacuum
- merge-head
Within your cluster YAML/UI you should also ensure to set all your **Hydrologs, Merge, Summary and other pools** to 0.
```yaml {title="YAML"}
batch-head:
replicas: 0
batch-peer:
replicas: 0
decay:
replicas: 0
intake-api:
replicas: 0
kafka-peer:
replicas: 0
kinesis-peer:
replicas: 0
keycloak:
replicas: 0
merge-head:
replicas: 0
merge-peer:
replicas: 0
turbine-api:
replicas: 0
vacuum:
replicas: 0
|
Query should continue to work and as stream-head and redpanda are still running we will buffer all the streaming data until the migration is done.
Now we need to wait.
Make sure to wait for all the components and pools you have set to 0 have been turned off. We are trying to ensure changes do not occur to the catalog at this time.
Once all services using postgres are down
Once all the services leveraging are down, we can start doing the dump of the database:
-
Start with keycloak:
shell
pg_dump --create --clean -U turbine keycloak > /pv/data/keycloak.sql
-
Then config_api:
shell
pg_dump --create --clean -U turbine config_api > /pv/data/config_api.sql
-
And finally catalog:
shell
pg_dump --create --clean -U turbine catalog > /pv/data/catalog.sql
Importing the data to your new database
-
Start with keycloak:
shell
psql -h $IP_FROM_GOOGLE_CLOUD -U postgres < /pv/data/keycloak.sql
-
Then config_api:
shell
psql -h $IP_FROM_GOOGLE_CLOUD -U postgres < /pv/data/config_api.sql
-
And finally catalog:
shell
psql -h $IP_FROM_GOOGLE_CLOUD -U postgres < /pv/data/catalog.sql
set up the role for each database
If all the import are successful you can log into your external postgres and set database privileges:
| psql -h $IP_FROM_GOOGLE_CLOUD -U postgres
|
| grant all privileges on database keycloak to keycloak;
grant all privileges on database config_api to config_api;
grant all privileges on database catalog to query_api;
|
Update your Hydrolix config to use the new database
Last step is to update the Kubernetes configuration to point to the new postgres and start again all the different services, and disable your current postgres:
| spec:
catalog_db_admin_db: postgres
catalog_db_admin_user: postgres
catalog_db_host: $IP_FROM_GOOGLE_CLOUD
scale:
postgres:
replicas: 0
|
Once the configuration is applied all the services have restarted you need to restart query-head and peer to leverage the new DB:
| kubectl rollout restart deployment query-head
|
