Projects and Tables

Hydrolix stores data within tables. You can group tables together in logical namespaces called projects. To reference your data, use the full path project.table. For example: monitoring.http_logs.

Projects⚓︎

Projects are equivalent to databases in a traditional RDBMS. You can create any number of projects, as long as each name is unique. Use short, lower case names with underscores to improve readability (for example, http_logs).

For example, an organization could contain three different projects:

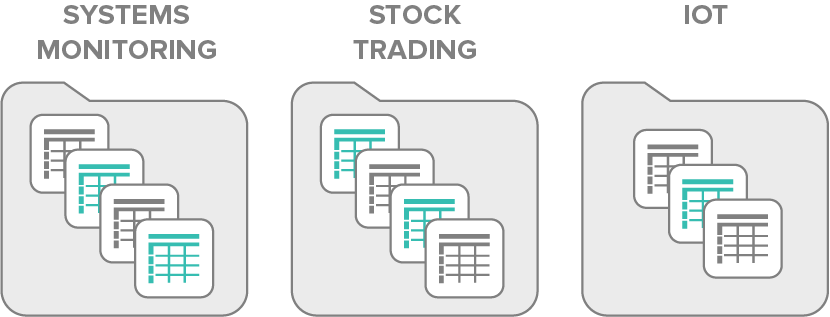

Multiple projects in an organization: Systems Monitoring, Stock Trading, and IOT

These projects contain three independent sets of unrelated data in the same deployment.

You can manage projects through the API or the Hydrolix user interface.

Create a project with the API⚓︎

You must authenticate to use the API.

  1. Log in with your username/password.
  2. Create a Project providing a name and description.

This example demonstrates a successful request and response made to the create project API:

1
2
3
4
{
  "name": "monitoring",
  "description": "Global monitoring of web services"
}

1
2
3
4
5
6
{
    "uuid": "dfadb1a9-c2ec-4e3e-aab6-1117c5532843",
    "name": "monitoring",
    "description": "Global monitoring of web services",
    ...
}

The response contains the uuid of the new project. In subsequent requests to the API, include the project uuid path parameter in your request to interact with resources in the project.

Project settings⚓︎

The settings object specifies project-level configuration. It describes options such as default configuration for queries and rate limiting.

Property Type Purpose Default Required
default_query_options object See Query Options Reference for descriptions of each option. See Query Options Reference No
blob string Don't use this API option. null No
rate_limit object Limits bytes per second ingest rate and max payload size. See Rate Limits. no limit No

Tables⚓︎

A table and the associated transforms represents your data set. Hydrolix will store it as a compressed, sorted, two-dimensional data structure in a number of .hdx files in cloud storage. It's referenced by the project and you can have many tables in the same project.

The create table API endpoint allows you to define a name for your data, along with defaults and controls for:

Before you can ingest data you will need to define a transform (a write schema) for a table, describing the data types to use.

Tables are flexible by design

One table may have multiple ingest transforms. This increases the number of columns of a table. - Multiple transforms on a single table must share the same datetime column - The total number of columns is a union of all transforms - Ideal for very closely associated data sets arriving from different ingest methods

Manage tables using the REST API or the Web UI.

Create a Table using the API⚓︎

You will need to be authenticated to use the API.

  1. Authenticate to the API.
  2. Create a Table.

An example create table API request/response exchange:

1
2
3
4
{
  "name": "http_logs",
  "description" : "web logs"
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
{
    "project": "6b0692f9-c040-47b1-988a-582e57dd3631",
    "name": "http_logs",
    "description": "web_logs",
    "uuid": "94dba0fa-24f6-4962-9190-e47ead444ec4",
    "created": "2022-05-31T03:48:55.172580Z",
    "modified": "2022-05-31T03:48:55.172599Z",
    "settings": {
        "stream": {
            "hot_data_max_age_minutes": 3,
            "hot_data_max_active_partitions": 3,
            "hot_data_max_rows_per_partition": 12288000,
            "hot_data_max_minutes_per_partition": 1,
            "hot_data_max_open_seconds": 60,
            "hot_data_max_idle_seconds": 30,
            "cold_data_max_age_days": 3650,
            "cold_data_max_active_partitions": 50,
            "cold_data_max_rows_per_partition": 12288000,
            "cold_data_max_minutes_per_partition": 60,
            "cold_data_max_open_seconds": 300,
            "cold_data_max_idle_seconds": 60
        },
        "age": {
            "max_age_days": 0
        },
        "reaper": {
            "max_age_days": 1
        },
        "merge": {
            "enabled": true,
            "partition_duration_minutes": 60,
            "input_aggregation": 20000000000,
            "max_candidates": 20,
            "max_rows": 10000000,
            "max_partitions_per_candidate": 100,
            "min_age_mins": 1,
            "max_age_mins": 10080
        },
        "autoingest": {
            "enabled": false,
            "source": "",
            "pattern": "",
            "max_rows_per_partition": 12288000,
            "max_minutes_per_partition": 60,
            "max_active_partitions": 50,
            "input_aggregation": 1073741824,
            "dry_run": false
        },
        "sort_keys": [],
        "shard_key": null,
        "max_future_days": 0
    },
    "url": "https://my-domain.hydrolix.live/config/v1/orgs/0ffa6312-61ba-4620-8d57-96514a7f3859/projects/6b0692f9-c040-47b1-988a-582e57dd3631/tables/94dba0fa-24f6-4962-9190-e47ead444ec4"
}

The response contains the uuid of the created table. Reference resources contained within a table (like transforms) using the project uuid path parameter and table uuid in their API endpoints.

Table settings⚓︎

The settings object specifies table-level configuration.

Property Type Purpose Default Required
default_query_options object Set query options for this table. See Query Options Precedence and Query Options Reference. See Query Options Reference No
rate_limit object Limits bytes per second ingest rate and max payload size. See Rate Limits. null (no limit) No
summary object Set this option if you want to create a summary table. null No
stream object Set this option to configure stream ingest options for the table. No
age object Use this setting to configure a TTL after which data will be deactivated. See Data Lifecycle Management No
reaper object Use this setting to configure a TTL after which data will be deleted. See Data Lifecycle Management No
merge object Enable/disable merge and configure the merge pools. See the Merge Pools documentation. "enabled": true, all other nested options default to null No
autoingest array[object] Enable and configure a continuous, batch ingest task for this table. See also Batch Ingest. "enabled": false No
sort_keys array[string] Change the sort order of data as it's ingested and stored. See also Table Settings Reference. null, Hydrolix sorts columns according to cardinality No
shard_key string Shard based on a specified key rather than the default, time-based. See also Table Settings Reference. null, results in time-based sharding No
max_future_days integer Retain rows with a timestamp less than this configured value of unit days. See also Table Settings Reference. 0 No
max_request_bytes integer Maximum allowed request size in bytes as measured by the content length of the request. 0 (no maximum) No
storage_map object Assigns a default storage bucket to a table. See also Table Settings Reference. turbine No
